How to Track Form Submission Events in Google Tag Manager Using AJAX Listener (Complete Guide)

Modern websites don’t always reload after a form is submitted. Instead, they use AJAX LISTENER (Asynchronous JavaScript and XML) to send data in the background. While this improves user experience, it creates a challenge for tracking—because Google Tag Manager’s default form triggers often fail.

If you’ve ever struggled with tracking forms that don’t redirect to a thank-you page, this guide is exactly what you need.

What Is AJAX and Why It Breaks Tracking?

AJAX allows forms to submit data without refreshing the page.

 Problem:

GTM’s built-in Form Submission Trigger relies on page reload or standard form behavior.

 Result:

• No trigger fires
• No conversion is recorded
• You lose valuable data

 Solution: AJAX Listener in GTM

An AJAX listener captures background network requests and pushes them into the dataLayer, allowing GTM to track them as events.

 Step-by-Step Setup

1. Add AJAX Listener Code (Advanced jQuery Listener)

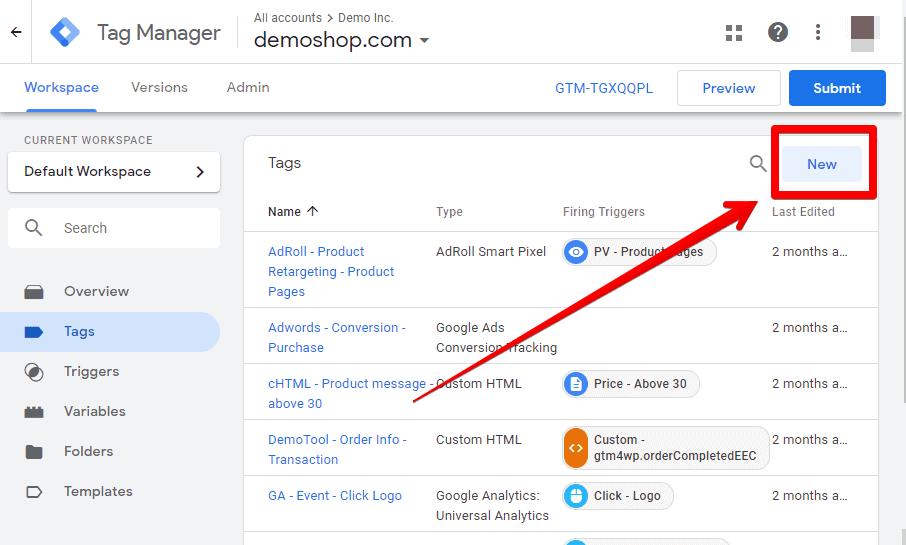

Go to Google Tag Manager → Tags → New → Custom HTML

Paste this full AJAX listener code:

<script id="gtm-jq-ajax-listen" type="text/javascript">
(function() {

'use strict';
var $;
var n = 0;
init();

function init(n) {

if (typeof jQuery !== 'undefined') {
$ = jQuery;
bindToAjax();
} else if (n < 20) {
n++;
setTimeout(init, 500);
}

}

function bindToAjax() {

$(document).bind('ajaxComplete', function(evt, jqXhr, opts) {

var fullUrl = document.createElement('a');
fullUrl.href = opts.url;

var pathname = fullUrl.pathname[0] === '/' ? fullUrl.pathname : '/' + fullUrl.pathname;
var queryString = fullUrl.search[0] === '?' ? fullUrl.search.slice(1) : fullUrl.search;

var queryParameters = objMap(queryString, '&', '=', true);
var headers = objMap(jqXhr.getAllResponseHeaders(), '\n', ':');

dataLayer.push({
'event': 'ajaxComplete',
'attributes': {
'type': opts.type || '',
'url': fullUrl.href || '',
'queryParameters': queryParameters,
'pathname': pathname || '',
'hostname': fullUrl.hostname || '',
'protocol': fullUrl.protocol || '',
'fragment': fullUrl.hash || '',
'statusCode': jqXhr.status || '',
'statusText': jqXhr.statusText || '',
'headers': headers,
'timestamp': evt.timeStamp || '',
'contentType': opts.contentType || '',
'response': (jqXhr.responseJSON || jqXhr.responseXML || jqXhr.responseText || '')
}
});

});

}

function objMap(data, delim, spl, decode) {

var obj = {};
if (!data || !delim || !spl) return {};

var arr = data.split(delim);

if (arr) {
for (var i = 0; i < arr.length; i++) {
var item = decode ? decodeURIComponent(arr[i]) : arr[i];
var pair = item.split(spl);

var key = trim_(pair[0]);
var value = trim_(pair[1]);

if (key && value) {
obj[key] = value;
}
}
}

return obj;
}

function trim_(str) {
if (str) {
return str.replace(/^[\s\uFEFF\xA0]+|[\s\uFEFF\xA0]+$/g, '');
}
}

})();
</script>

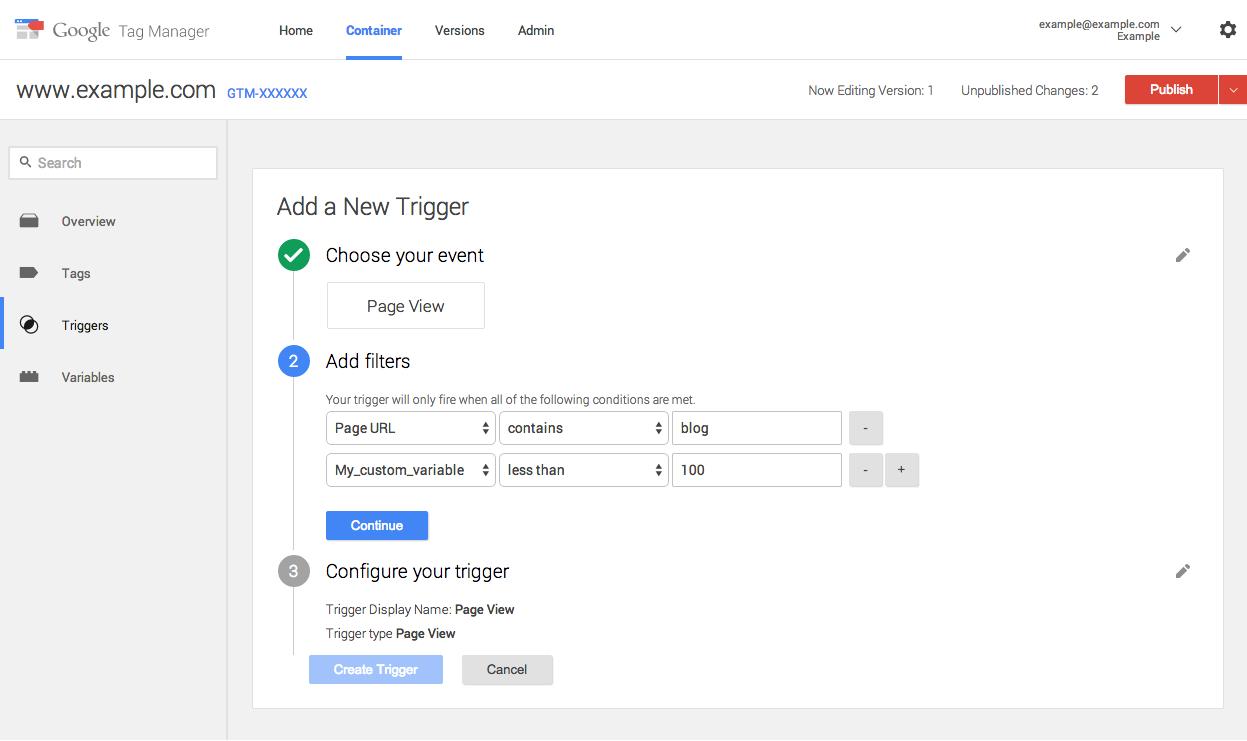

2. Add Trigger to Fire Listener

Trigger Type: All Pages

 This ensures the listener is active across your entire website.

 3. Create Data Layer Variables (Important Step)

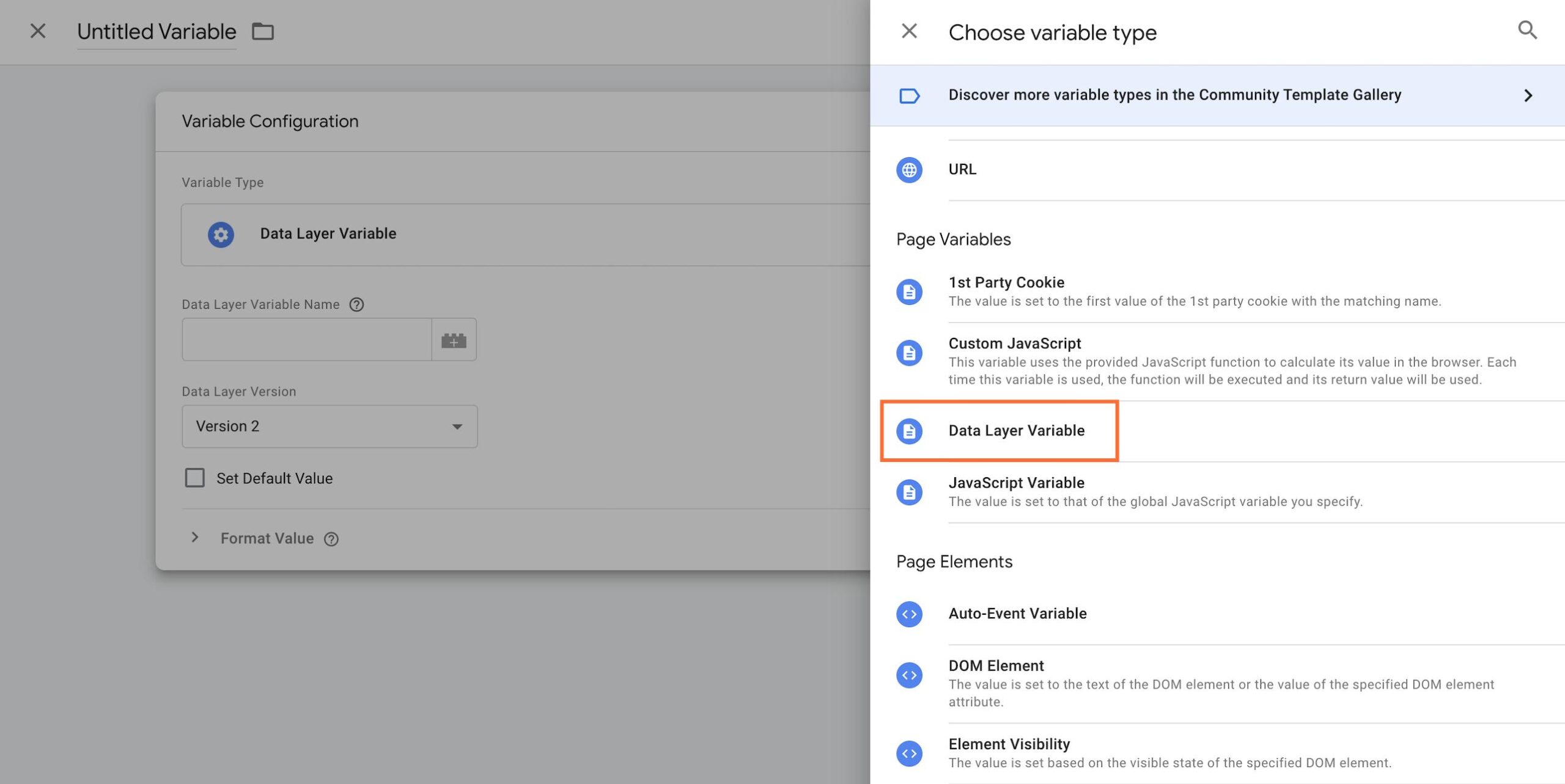

Go to Variables → New → Data Layer Variable

Create:

• Variable Name: ajaxURL
  Data Layer Variable Name: attributes.url
• Variable Name: ajaxStatus
  Data Layer Variable Name: attributes.statusCode

Advanced (Recommended) – Confirmation Variable

Since this listener stores response inside attributes.response, you can extract deeper insights.

If your form response contains confirmation like:

Then create:

• Variable Name: confirmationStatus
• Data Layer Variable Name: attributes.response.data.confirmation

 Why This Setup Is Powerful

• attributes.statusCode = 200 → Request success
• confirmationStatus = success → Actual form success

This avoids false tracking.

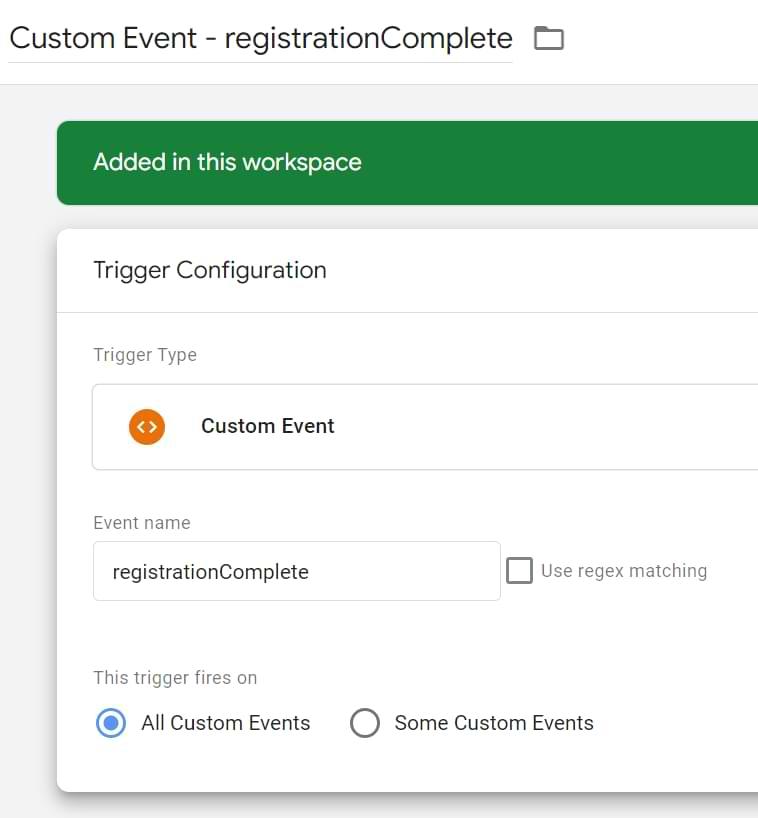

4. Create Custom Event Trigger

Go to Triggers → New

• Trigger Type: Custom Event
• Event Name: ajaxComplete

Add conditions:

• ajaxURL contains contact
• AND
• confirmationStatus equals success

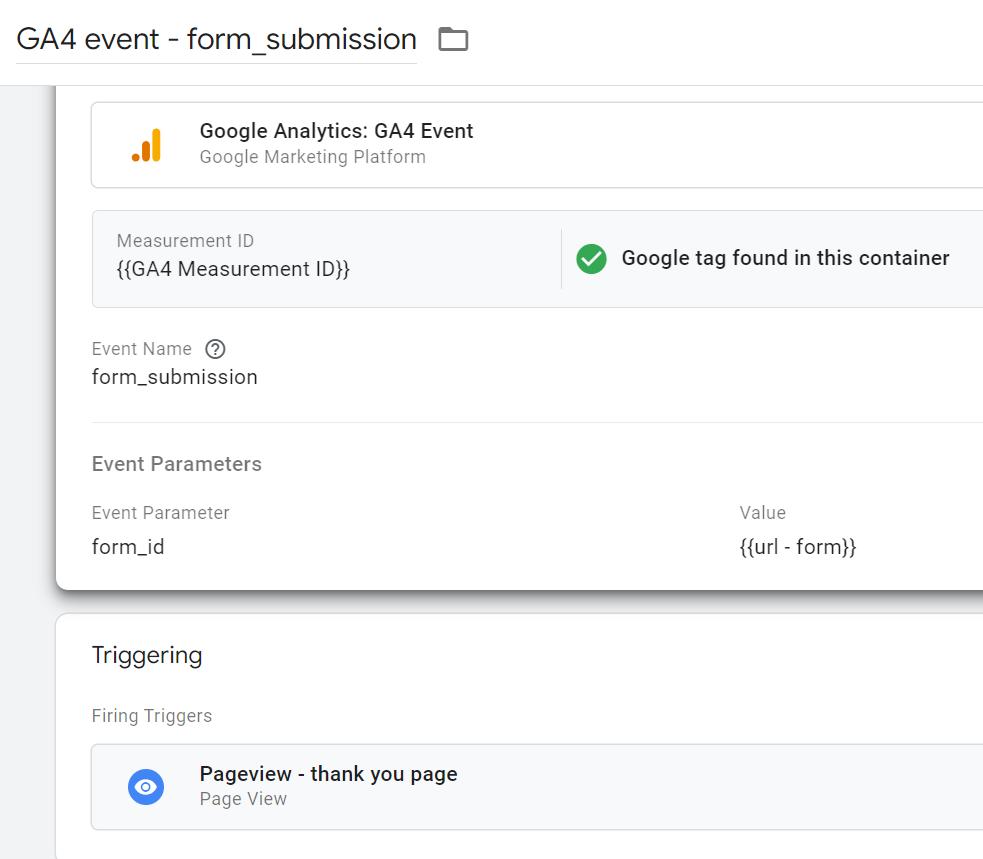

5. Create GA4 Event Tag

• Tag Type: GA4 Event
• Event Name: form_submit_ajax

Add parameters:

• form_url → {{ajaxURL}}
• status → {{ajaxStatus}}
• confirmation → {{confirmationStatus}}

Attach your trigger.

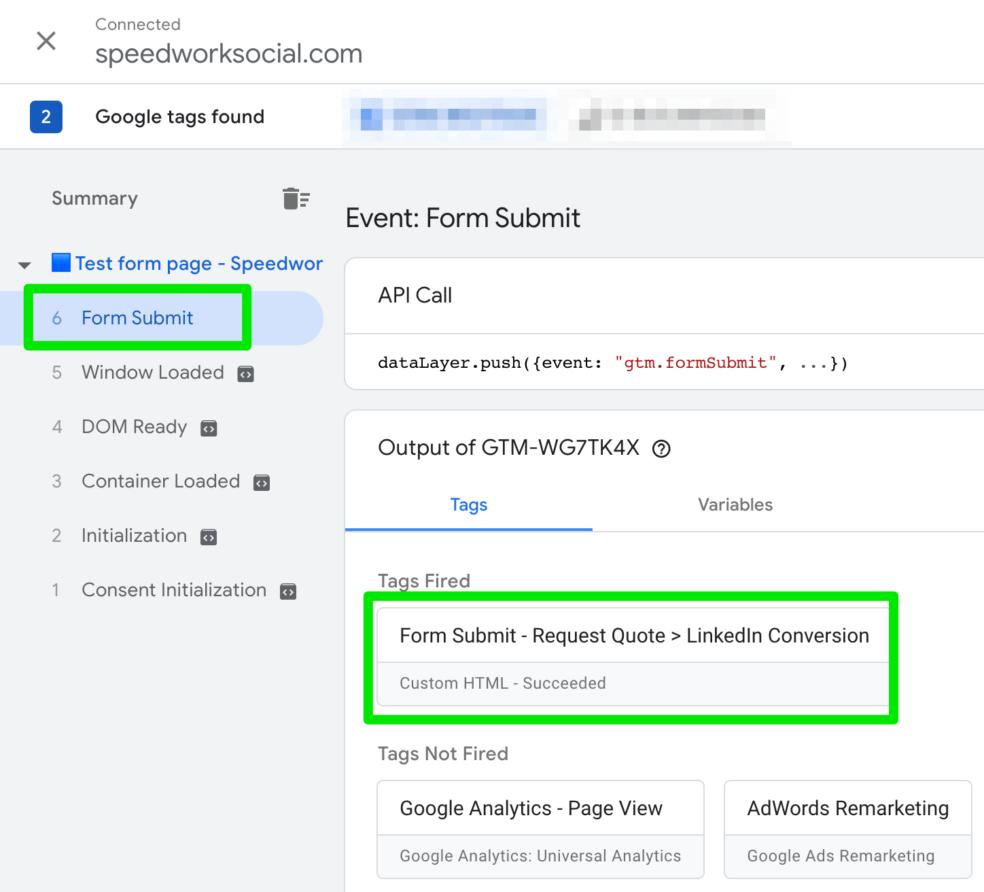

6. Test Using Preview Mode

• Open GTM Preview
• Submit form

Check:

• ajaxComplete event fires
• Tag triggers correctly

7. Publish Your Container

Once confirmed:

 Click Submit → Publish

How to Confirm in Google Analytics (GA4)

Once your setup is complete, it’s important to verify that everything is working correctly.

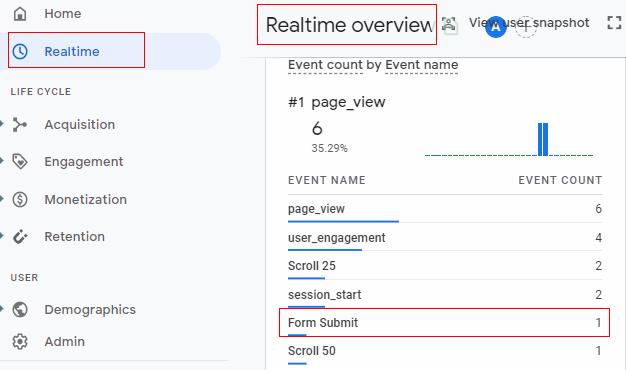

Go to your GA4 property:

• Open Realtime Report
• Submit your form again on your website
• Look for the event: form_submit_ajax

 If you can see the event in real-time, your tracking is working perfectly.

You can also mark this event as a conversion inside GA4 to start measuring performance in your reports.

 Important Notes

• This listener works only if your site uses jQuery AJAX
• For modern sites using fetch API, a different listener is needed
• Always filter using ajaxURL to avoid noise from other AJAX calls

 Pro Tip (Best Practice)

If possible, use developer-based tracking:

Cleaner, faster, and 100% accurate.

Final Thoughts

Using this advanced AJAX listener gives you deep visibility into form submissions, especially on dynamic websites.

With the right setup, you can:

• Track real conversions (not just clicks)
• Avoid false positives
• Improve ad performance
• Make smarter marketing decisions
